UNDERFLOOR SECTIONS

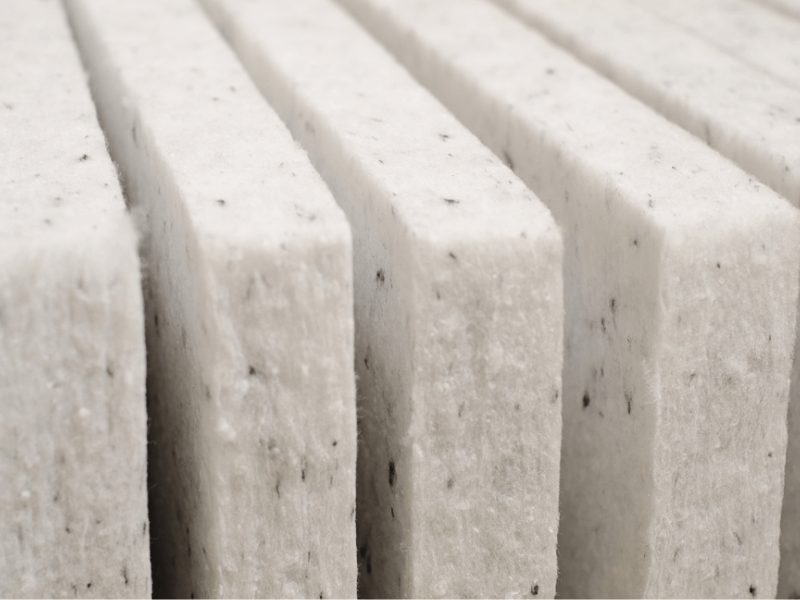

Mammoth underfloor insulation sections are easy to handle and install because they are self-supporting.



Description

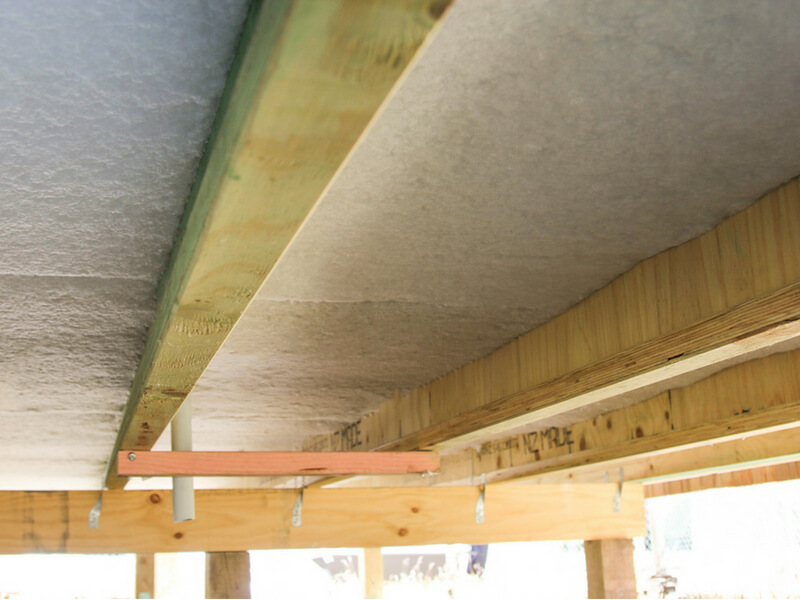

Mammoth underfloor insulation are self-supporting medium density pads that squeeze into place between joists without staples or other fixings.

Cut to a variety of widths, Mammoth® polyester underfloor insulation sections are moisture resistant, high performance options that are safer to install than stapled solutions. Our insulation sections have a range of R-values of up to R3.8 (when double layered).

Mammoth products contain recycled polyester fibres. Mammoth underfloor section insulation uses up to 7,800 recycled plastic bottles per 100sqm*.

Description

Mammoth underfloor insulation are self-supporting medium density pads that squeeze into place between joists without staples or other fixings.

Cut to a variety of widths, Mammoth® polyester underfloor insulation sections are moisture resistant, high performance options that are safer to install than stapled solutions. Our insulation sections have a range of R-values of up to R3.8 (when double layered).

Mammoth products contain recycled polyester fibres. Mammoth underfloor section insulation uses up to 7,800 recycled plastic bottles per 100sqm*.

GALLERY/VIDEOS



SPECIFICATIONS




PRODUCT RANGE PACK SIZES
Density (kg/m3) R-Value Nominal thickness (mm) Dimensions (mm) Pieces per pack Area per pack (m2)
Underfloor Sections 16.67 R 1.9 90 370 x 1140 16 6.75
16.67 R 1.9 90 425 x 1140 16 7.75
16.67 R 1.9 90 475 x 1140 14 7.58
16.67 R 1.9 90 580 x 1140 12 7.93
15 R 2.8 140 370 x 1140 10 4.21
15 R 2.8 140 425 x 1140 10 4.84
15 R 2.8 140 475 x 1140 10 5.41
15 R 2.8 140 580 x 1140 8 5.28
35.7 R 3.4 140 370 x 1140 10 4.21
35.7 R 3.4 140 425 x 1140 10 4.84
35.7 R 3.4 140 475 x 1140 10 5.41
35.7 R 3.4 140 580 x 1140 8 5.28
Double Layer - R1.9 x 2 16.67 R 3.8 180 370 x 1140 16 6.75*
16.67 R 3.8 180 425 x 1140 16 7.75*
16.67 R 3.8 180 475 x 1140 14 7.58*
16.67 R 3.8 180 580 x 1140 12 7.93*


For any system - single or double layered - the joist depth must be greater than the insulation thickness.

* For Double Layering - Double the quantity of product is required. For instance, a 100m2 area requires 200m2 of product to achieve a double layer.


  • High performance, semi-rigid 100% polyester airlay sections.
  • Self-supporting for a smooth friction fit without creases, folds or tucks.
  • Easy and safe to install - simply squeezes between joists with no need for staples.
  • Mammoth underfloor section insulation uses up to 7,800 recycled plastic bottles per 100sqm. Based on 500ml PET Bottles (16.2g).
  • Mammoth sections come in pre-cut sections of varying widths and lengths.
  • Lightweight and easy to handle - can easily be cut using wide blade craft knives or specialised insulation saws.
  • Unaffected by moisture, Mammoth insulation will continue to perform once dried out.
  • Assists in absorbing noise to create a quieter environment.
  • Non-corrosive - will not affect electrical wiring underfloor.
  • Heat bonded - no glues or binders that can break down so it won't sag or settle over time.
  • Red List Free - no formaldehyde or pesticides added.
  • Safe, non-itch, odourless and non-toxic - no precautions are required for handling the product.
  • Mammoth underfloor sections are BRANZ 802 appraised and have Environmental Choice certification. NZ Green Building Council approved.
  • Long lasting, Mammoth insulation is performance warranted for 50 years (T&Cs apply).
  • Mammoth underfloor insulation products have an Ozone Depleting Potential (ODP) of zero.
  • Mammoth products are made in a zero waste production process and are fully recyclable.
  • Manufactured by InZone Industries Ltd, NZ's first and only Toitū net carbonzero certified insulation manufacturing organisation.

Technical Attributes Standard Test Result
New Zealand Building Code
Durability Clause B2.3.1 a) 15 years
Clause B2.3.1 b) 50 years		 Ref: BRANZ Appraisal No 8021
Internal Moisture Clause E3.3.1 Ref: BRANZ Appraisal No 8021
Hazardous Building Materials Clause F2.3.1 Ref: BRANZ Appraisal No 8021
Energy Efficiency Clause H1.3.1(a)
Clause H1.3.2 E		 Ref: BRANZ Appraisal No 8021
Product Safety
Non Toxic OSH Health and Safety Guidelines2 Polyester products are ‘non-toxic’
Non Irritant OSH Health and Safety Guidelines2 Polyester products are ‘non-irritant’
Respiratory Safe n/a Polyester fibres are non-respirable
Fire Test ISO9705 Group1S
AS/NZS60695.2.11 Passed - Glow wire flammability test
AS/NZS60695.11.5 Passed - Test flames (Needle-flame test)
VOC Emission Safe 3 Total VOC ≤ 0.5mg/m3 < 0.005mg/m3 - level below detection 4
Formaldehyde ≤ 0.06mg/m3 < 0.009mg/m3 - level below detection
Glue Free Free from all glues
Non Corrosive AS/NZS4859.1 Materials composed entirely of polyester are regarded as non-corrosive and are exempt from testing. Alkalinity of pH 7.8.
Vermin Resistant Not a food source for vermin (and not treated)

1 Meet or contribute to these provisions when designed, used, installed and maintained in accordance with BRANZ Appraisal 802.
2 Occupational Safety and Health Service. Health and Safety Guidelines for the Selection and Safe Handling of Synthetic Mineral Fibres. Dept,of Labour, 1994, p18.
3 Mammoth has been tested under ASTM D5116. Based on test results for a product with similar nominal weight.
4 All individual VOCs were less than their threshold limit values. Carcinogens and reproductive toxins were not identified as part of the VOCs.


  • High performance, semi-rigid 100% polyester airlay sections.
  • Self-supporting for a smooth friction fit without creases, folds or tucks.
  • Easy and safe to install - simply squeezes between joists with no need for staples.
  • Mammoth underfloor section insulation uses up to 7,800 recycled plastic bottles per 100sqm. Based on 500ml PET Bottles (16.2g).
  • Mammoth sections come in pre-cut sections of varying widths and lengths.
  • Lightweight and easy to handle - can easily be cut using wide blade craft knives or specialised insulation saws.
  • Unaffected by moisture, Mammoth insulation will continue to perform once dried out.
  • Assists in absorbing noise to create a quieter environment.
  • Non-corrosive - will not affect electrical wiring underfloor.
  • Heat bonded - no glues or binders that can break down so it won't sag or settle over time.
  • Red List Free - no formaldehyde or pesticides added.
  • Safe, non-itch, odourless and non-toxic - no precautions are required for handling the product.
  • Mammoth underfloor sections are BRANZ 802 appraised and have Environmental Choice certification. NZ Green Building Council approved.
  • Long lasting, Mammoth insulation is performance warranted for 50 years (T&Cs apply).
  • Mammoth underfloor insulation products have an Ozone Depleting Potential (ODP) of zero.
  • Mammoth products are made in a zero waste production process and are fully recyclable.
  • Manufactured by InZone Industries Ltd, NZ's first and only Toitū net carbonzero certified insulation manufacturing organisation.

PRODUCT RANGE PACK SIZES
Density (kg/m3) R-Value Nominal thickness (mm) Dimensions (mm) Pieces per pack Area per pack (m2)
Underfloor Sections 16.67 R 1.9 90 370 x 1140 16 6.75
16.67 R 1.9 90 425 x 1140 16 7.75
16.67 R 1.9 90 475 x 1140 14 7.58
16.67 R 1.9 90 580 x 1140 12 7.93
15 R 2.8 140 370 x 1140 10 4.21
15 R 2.8 140 425 x 1140 10 4.84
15 R 2.8 140 475 x 1140 10 5.41
15 R 2.8 140 580 x 1140 8 5.28
35.7 R 3.4 140 370 x 1140 10 4.21
35.7 R 3.4 140 425 x 1140 10 4.84
35.7 R 3.4 140 475 x 1140 10 5.41
35.7 R 3.4 140 580 x 1140 8 5.28
Double Layer - R1.9 x 2 16.67 R 3.8 180 370 x 1140 16 6.75*
16.67 R 3.8 180 425 x 1140 16 7.75*
16.67 R 3.8 180 475 x 1140 14 7.58*
16.67 R 3.8 180 580 x 1140 12 7.93*


For any system - single or double layered - the joist depth must be greater than the insulation thickness.

* For Double Layering - Double the quantity of product is required. For instance, a 100m2 area requires 200m2 of product to achieve a double layer.


Technical Attributes Standard Test Result
New Zealand Building Code
Durability Clause B2.3.1 a) 15 years
Clause B2.3.1 b) 50 years		 Ref: BRANZ Appraisal No 8021
Internal Moisture Clause E3.3.1 Ref: BRANZ Appraisal No 8021
Hazardous Building Materials Clause F2.3.1 Ref: BRANZ Appraisal No 8021
Energy Efficiency Clause H1.3.1(a)
Clause H1.3.2 E		 Ref: BRANZ Appraisal No 8021
Product Safety
Non Toxic OSH Health and Safety Guidelines2 Polyester products are ‘non-toxic’
Non Irritant OSH Health and Safety Guidelines2 Polyester products are ‘non-irritant’
Respiratory Safe n/a Polyester fibres are non-respirable
Fire Test ISO9705 Group1S
AS/NZS60695.2.11 Passed - Glow wire flammability test
AS/NZS60695.11.5 Passed - Test flames (Needle-flame test)
VOC Emission Safe 3 Total VOC ≤ 0.5mg/m3 < 0.005mg/m3 - level below detection 4
Formaldehyde ≤ 0.06mg/m3 < 0.009mg/m3 - level below detection
Glue Free Free from all glues
Non Corrosive AS/NZS4859.1 Materials composed entirely of polyester are regarded as non-corrosive and are exempt from testing. Alkalinity of pH 7.8.
Vermin Resistant Not a food source for vermin (and not treated)

1 Meet or contribute to these provisions when designed, used, installed and maintained in accordance with BRANZ Appraisal 802.
2 Occupational Safety and Health Service. Health and Safety Guidelines for the Selection and Safe Handling of Synthetic Mineral Fibres. Dept,of Labour, 1994, p18.
3 Mammoth has been tested under ASTM D5116. Based on test results for a product with similar nominal weight.
4 All individual VOCs were less than their threshold limit values. Carcinogens and reproductive toxins were not identified as part of the VOCs.

Installation
Mammoth Underfloor Insulation Sections must be installed according to the manufacturer’s guidelines and in accordance with NZS 4246 (Energy Efficiency - Installing Insulation in Residential Buildings). Installation Instructions for Mammoth Underfloor Insulation Sections can be found at www.mammoth.co.nz/downloads Contact us on 0800 MAMMOTH for more details.

50 Year Warranty
Mammoth Insulation has a 50 year warranty. Our product warranty covers that - so long as the insulation is installed correctly and remains adequately protected - Mammoth insulation will perform for 50 years. The warranty applies only to 100% polyester insulation products manufactured by InZone Industries Ltd and not to other composite products manufactured by InZone Industries Ltd. Read the full warranty at www.mammoth.co.nz/downloads for terms and conditions.

BRANZ Appraised
Mammoth Underfloor Insulation Sections have been tested by, and is covered by BRANZ Appraisal 802.


DOWNLOAD DATASHEET
Mammoth Underfloor Sections Installation Guidelines


Q&A/FREQUENTLY ASKED QUESTIONS



This is a measure of thermal efficiency - is measures the thermal resistance of the material. The higher the R-Value the better.

Minimum R-Values are specified for underfloor in the building code which for all regions of New Zealand is R1.3.

Yes - and Mammoth Underfloor sections are easier to install than most other forms of underfloor insulation since they are:

  • non-irritant
  • do not need staples or other fixings
  • simply squeeze into position between joists
